# Unswirl Image

![](https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2F4PijZFaXU0DTuBT1nDtG%2Ftwirl_example_1.png?alt=media\&token=749ab0e6-5a90-4c0a-a4c0-4fc651c1058f)

### 1. Introduction

Imagine you get an Image like this which contains a text. But the image is digitaly distored and you should find a way to made it readable.\
I’ve tried to solve a particular challenge of a CTF Game and the final flag was masked like this :sunglasses:

### 2. The Challenge

The challenge contained a file without file extension. It's a pdf file and I'll add it here:

{% file src="https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2F111KAeUlYBy3cczuWAnQ%2Fenigma.pdf?alt=media&token=81e92c15-263d-441f-9857-af458cd59073" %}
Challenge File
{% endfile %}

### 3. Analysis

Open that file in a texteditor shows a signature of a pdf file:

<div align="left"><img src="https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2FiJwhr9wNxb6nEhnNlRkd%2Fsignture.PNG?alt=media&#x26;token=cc35e9c4-1823-40a0-92b6-afae08f26c02" alt=""></div>

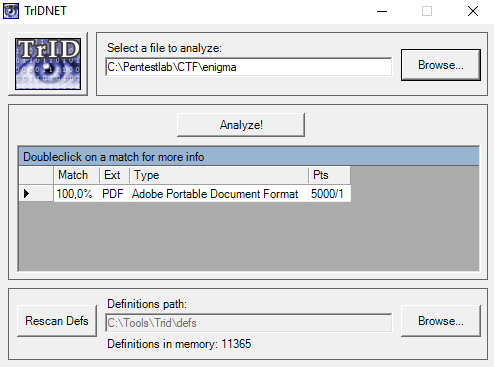

A recheck with the tool [TrIDNET](http://mark0.net/soft-tridnet-e.html) confirms that the signature match a pdf file:

<div align="left"><img src="https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2F1kNwKuiDAm7hn8tz4TK1%2Fsignture2.PNG?alt=media&#x26;token=b6838166-9cf9-432a-9bfc-6f35936647d7" alt=""></div>

The pdf file contains a image with a cartoon character and the text: **I dare you find it!** :smile:

![](https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2FamRTrMecEWeg3Dv6dgGE%2Fpdf.PNG?alt=media\&token=889d60a9-ea08-4f0e-8e6f-21790699b10e)

For the further analysis I've used a free tool called [Winking PDF Analyzer](https://www.winking.be/en/products/pdfanalyzer)

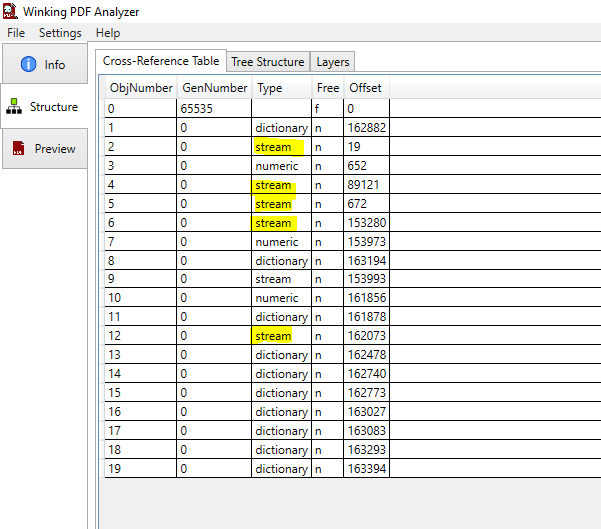

A quick view shows that the pdf file contains streams. My assumption was that there is something hidden in that streams and I’ve tried to find a way to decode them.

<div align="left"><img src="https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2FUHBgHZUuGJvT40ok91AW%2Fanalyze1.PNG?alt=media&#x26;token=3b82bc95-76cf-4fd0-9386-dad0508268a3" alt=""></div>

On [stackoverflow](https://stackoverflow.com/questions/27997930/how-to-decode-a-pdf-stream) I did find a hint howto decode them:

> The easiest way to decode a PDF file is to use a tool intended to do it, for example [MuPDF](https://mupdf.com) can do this with „`mutool clean -d <input pdf file> <output PDF file>`“ will decompress (`-d`) all the compressed streams in a PDF file and write the output to a new PDF file.
>
> mutool.exe clean -d enigma.pdf enigma\_decoded.pdf

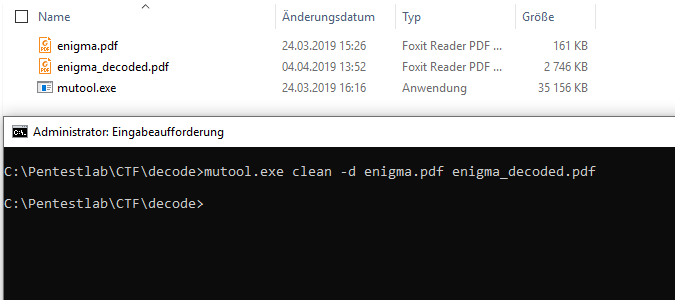

As we can see the filesize has changed from 161 KB  to 2746 KB!

<div align="left"><img src="https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2Ft1qaus7tyPyaFbvaJlqH%2Fdecode1.PNG?alt=media&#x26;token=b9c670ef-e533-4277-87f1-c9b2d934f8f7" alt=""></div>

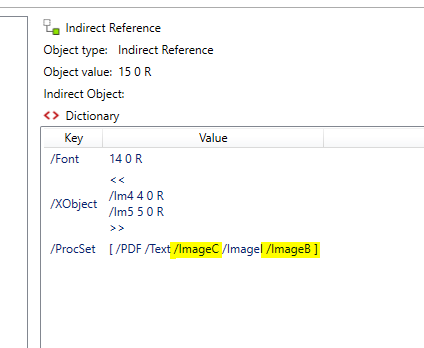

If I open the decoded pdf file again in Winking PDF Analyzer, I can see a reference of two images:

<div align="left"><img src="https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2Fi8OljEqN9bJojfLXpYWs%2Fanalyze3.PNG?alt=media&#x26;token=302f3651-8afe-401f-b25b-7de62020e05c" alt=""></div>

> mutool.exe extract enigma\_decoded.pdf

I’m using again mutool to extract the images of the pdf:

<div align="left"><img src="https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2FgNPrMyzQVQTlv3Y8AJM9%2Fdecode2.PNG?alt=media&#x26;token=8b910a95-b40e-49e9-bb65-f3390ed904f9" alt=""></div>

img-005.png is the cartoon, but now let’s see what is **img-004.png**

![](https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2FXnrW7WsFiffFsqioARdJ%2FPage-1-Image-1.png?alt=media\&token=55795c4b-f3a6-4a3f-9cda-a25d07d2a55a)

### 4. Retrieve the flag

Sadly I had no plan how to revert that image, but a friend of mine gave me a hint:

**What computers can swirl, Computers can unswirl!**

In 2007 the police [catched a pedophile](https://thelede.blogs.nytimes.com/2007/10/08/interpol-untwirls-a-suspected-pedophile/) men who tried to mask his identity with a swirl face.\


<div align="left"><img src="https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2FkvY6ZH5z4l0IMItqGX6p%2Fsuspect-ChristopherPaulNeil.jpg?alt=media&#x26;token=9591a745-a4db-41ec-a5b0-b5c11a08d848" alt=""></div>

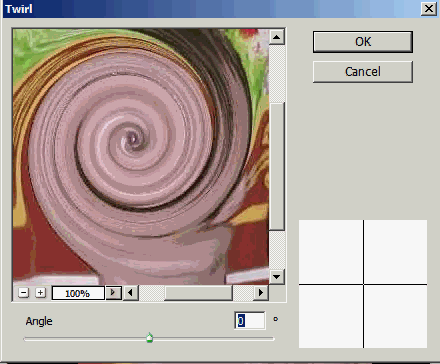

It is possible to revert the image with photoshop or an online image editing tool.

<div align="left"><img src="https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2F41dG33NRbT0YQdsh2x8V%2Ftwisted.gif?alt=media&#x26;token=822e03be-5b29-426e-9c0d-0731e6c438ea" alt=""></div>

Now we can try to revert the image with [photoshop](https://www.photoshop.com/tools) by choosing the effect distort –> twirl

Or using an [online image editor](https://www298.lunapic.com/editor/?action=swirl), which is a much faster way:

![](https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2Fby6HobcBgfAaLdNViZhA%2Fdecode4.PNG?alt=media\&token=f73cc0bb-5e3c-400c-87b3-15d1bb53b127)

The same can be done with the black image above and we can read the text:

![](https://3977837039-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfT0VPyK6X13Egd9pzy%2Fuploads%2FAFAXtfsUgZW7IJL3djWP%2F155430525967832887.png?alt=media\&token=fc59c766-ee7c-43cb-b09b-fb1071133938)

\
\
